HERZ-PIPEFIX – T-pieces with female thread

T72XX

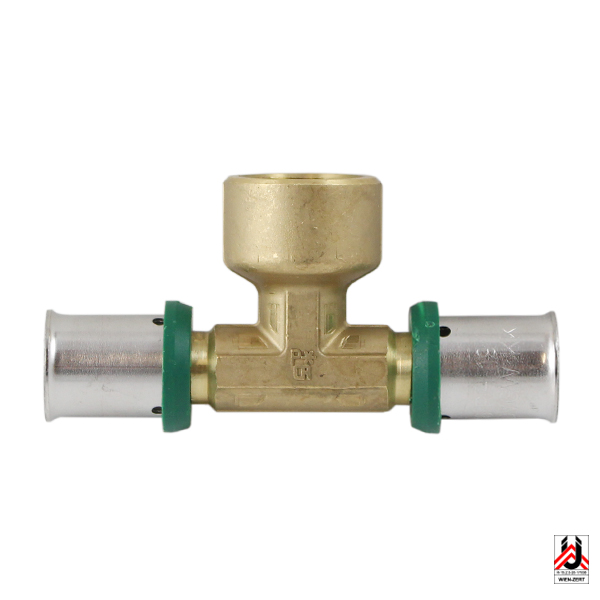

HERZ-PIPEFIX – T-pieces with female thread

Press fittings with article number T xxxx xx are made of dezincification-resistant and drinking water-hygienic brass, double O-ring of EPDM according to KTW/UBA, stainless steel sleeve, plastic ring green for centering the sleeve. The brass quality corresponds to the relevant standards for drinking water installations, such as EN1213, ONORM B 5014-3 and ONORM B 5024-3, as well as DIN 50930, Part 6 and TRV. Operating temperature to 90 °C, max. operating pressure 10 bar. Dimensions 16 - 40 not sealed when not compressed.

Product List

Code Description
  • Dim.
  • Sale Unit
T 7216 41 HERZ-PIPEFIX – T-pieces with female thread
  • 16 x 2 - 1/2 -16 x 2
  • 60
T 7220 41 HERZ-PIPEFIX – T-pieces with female thread
  • 20 x 2 - 1/2 - 20 x 2
  • 50
T 7226 42 HERZ-PIPEFIX – T-pieces with female thread
  • 26 x 3 - 1/2 - 20 x 2
  • 30
T 7226 41 HERZ-PIPEFIX – T-pieces with female thread
  • 26 x 3 - 1/2 - 26 x 3
  • 30
T 7220 42 HERZ-PIPEFIX – T-pieces with female thread
  • 20 x 2 – 3/4 – 20 x 2
  • 40
T 7232 43 HERZ-PIPEFIX – T-pieces with female thread
  • 32 x 3 - 1/2 - 32 x 3
  • 25
T 7226 44 HERZ-PIPEFIX – T-pieces with female thread
  • 26 x 3 - 3/4 - 26 x 3
  • 25
T 7232 41 HERZ-PIPEFIX – T-pieces with female thread
  • 32 x 3 - 3/4 - 32 x 3
  • 25
T 7232 42 HERZ-PIPEFIX – T-pieces with female thread
  • 32 x 3 - 1 - 32 x 3
  • 25
T 7240 41 HERZ-PIPEFIX – T-pieces with female thread
  • 40 x 3.5 - 1 - 40 x 3.5
  • 15
T 7232 44 HERZ-PIPEFIX – T-pieces with female thread
  • 32 x 3 - 1 1/4 - 32 x 3
  • 20
T 7240 42 HERZ-PIPEFIX – T-pieces with female thread
  • 40 x 3.5 - 1 1/4 - 40 x 3.5
  • 15
T 7250 42 HERZ-PIPEFIX – T-pieces with female thread
  • 50 x 4 - 1 1/4 - 50 x 4
  • 6
T 7250 43 HERZ-PIPEFIX – T-pieces with female thread
  • 50 x 4 - 1 1/2 - 50 x 4
  • 6
T 7263 44 HERZ-PIPEFIX – T-pieces with female thread
  • 63 x 4.5 - 2 - 63 x 4.5
  • 4
