F 7713

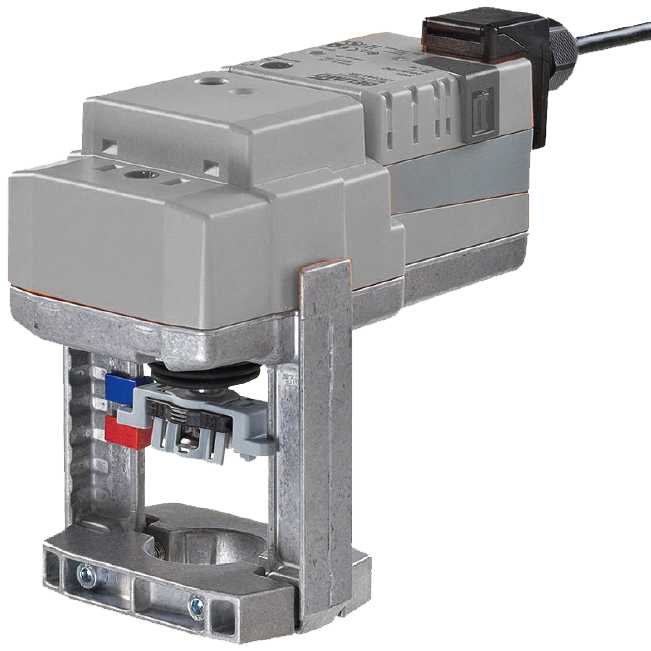

Actuator for 2-way and 3-way globe valves, fast running, positioning force 500 N
Actuation: continuous, control signal 2...10 V, positioning force 500 N, stroke 15 mm, with position feedback signal 2 - 10 V, connection terminals with cable 1 m, operating time of motor 35s / 15mm, degree of protection IP54, manual adjustment with push button, lockable, power consumption in operation 2 W.
Product List
| Code | Description |
|
|---|---|---|
| F 7713 05 | HERZ actuator for 2-way and 3-way globe valves 24 V AC / DC, fast running |
|
