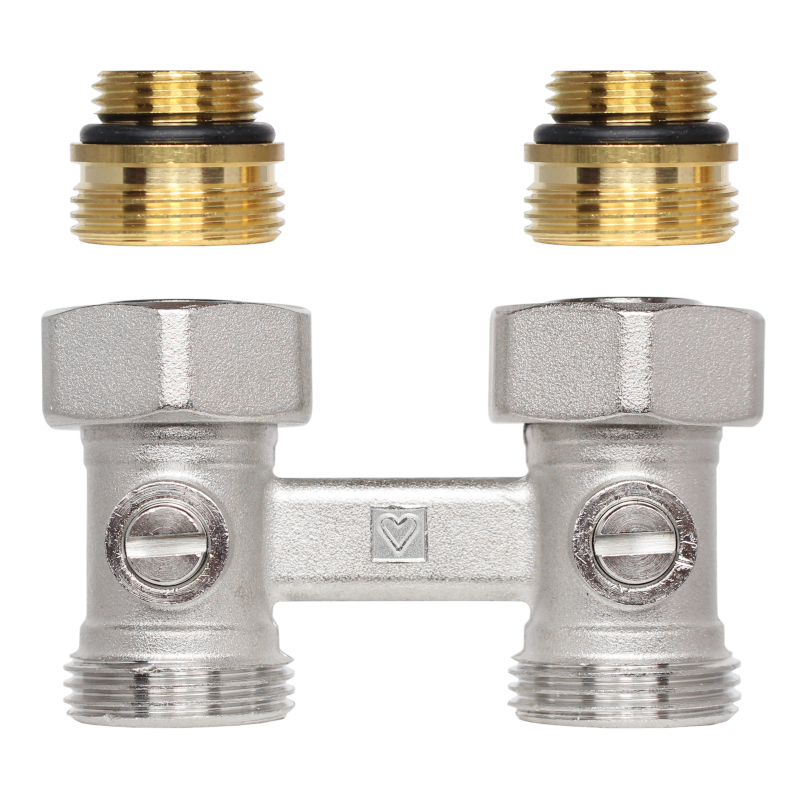

HERZ-3000 connection part with ball valves for two-pipe systems G1/2“xG ¾“, straight model
Two-pipe connection set, straight model.
Pipe centre spacing 50 mm, radiator connection G 1/2 with freely rotating nut, 2 connection nipples 1 3002 31 are enclosed. Pipe connection with male thread G 3/4 with cone for compression adapter connection. Compression adapters must be ordered separately.
Product List
| Code | Description |
|
|---|---|---|
| 1 3766 32 | HERZ-3000 connection part with ball valves, straight model |
|
