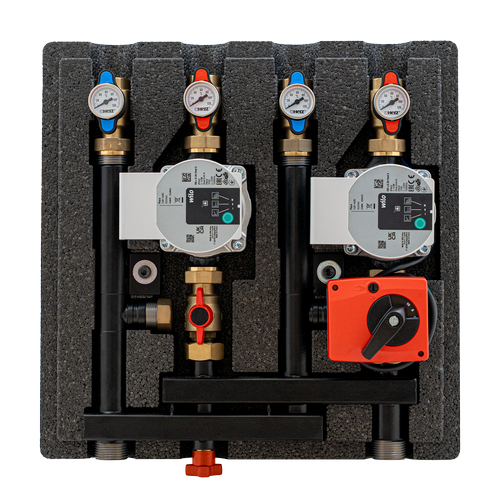

Model: DIRECT / MIX;

Time- and space-saving heating circuit connection;

Pre-installed connection system for pumps with length 130 mm;

With thermal insulation;

Ball valves with integrated thermometer for supply,

Ball valves with integrated thermometer und check valve for return;

Combined Manifold–Separator Module made of powder-coated steel (black);

Switchable between pressurised and non-pressurised manifold operation;

Mixing valve with actuator 230 V AC, 3-point (1 7712 63);

Primary side G 3/4": distance between flow and return – 270 mm;

Secondary side G 1": distance between flow and return – 90 mm;

Max. operating pressure: 4 bar;

Max. operating temperature: 110 °C;

Short-term load: 120 °C < 15 s.
